Gas Spring

The gas spring has a light structure and a large working stroke; the movement is smooth and can act as a damping buffer; it has a stable and nearly unchanged characteristic line; it is easy to operate, safe and reliable. But the processing cost is higher.

Non-locking/Locking gas spring with Hydropneumatic adjustment.
Our Gas Springs can control the Extension Force and the Damping Action and can be used to move heavy flaps or lids both easily and safely.

Non-lockable Type Gas Spring
Lockable Type Gas Spring

Feature
Daomtec gas springs are used to sustain the activation of operating components as well as offers its customers unique functions and special forms when project their gas springs.

Available Sizes
Dimensions and F1 changeable to complywith buyer’s request

Non-lockable Type Gas Spring(mm,N)

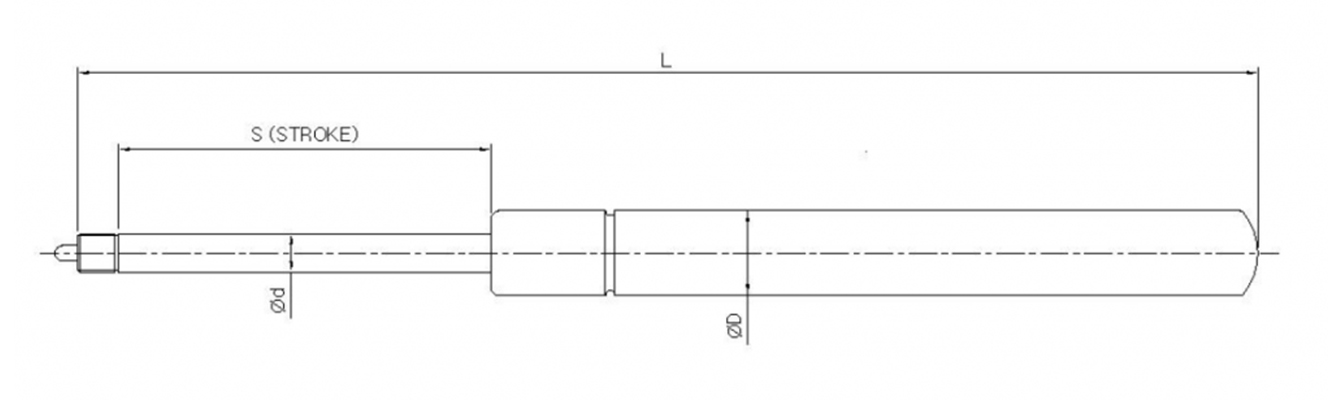

Model No.	Ød	ØD	S	L	Force
DG1F	6	15	20-200	100-500	20-400
DG3F	10	22	20-400	100-1000	20-800
DG4F	10	28	20-400	100-1000	40-1200
DG5F	10	24	20-400	100-1000	20-1400

Feature
Controlled pushing, lifting and adjusting up to rigid locking in both directions.
Lockable gas spring can be applied to anywhere requires complete control of pushing or lifting with rigid locking system.

Available Sizes
Dimensions and F1 changeable to complywith buyer’s request.

Lockable Type Gas Spring(mm,N)

Model No.	Ød	ØD	S	L	Force
DG3L	10	22	20-200	100-500	100-800
DG4L	10	28	20-400	100-1000	100-1200
DG4L	12.5	28	20-400	100-1000	100-1200
DG5L	10	24	20-400	100-1000	100-1400
